Front View Camera for Toyota Corolla 2019 YM
Overview
Description

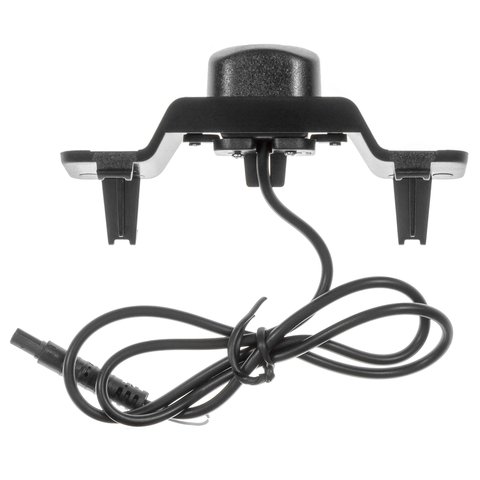

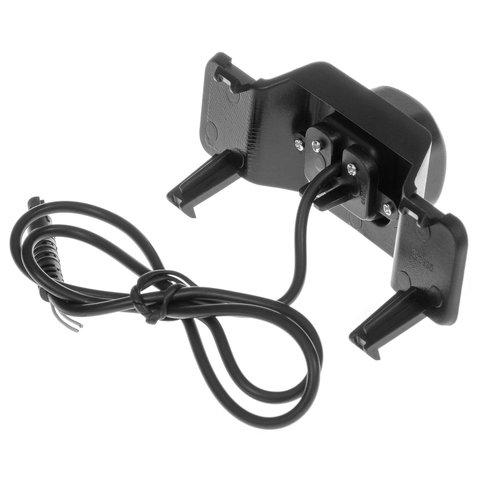

Car front view camera for Toyota Corolla 2019 YM .
RFCC camera control system will allow you to quickly and easily connect the front view camera and switch between images from connected cameras using OEM steering wheel buttons of your car.
How RFCC works
Note! This camera is not meant for constant connection to car's electrical system. Power supply should be organized in such way that the camera switches on only when it is necessary. We also recommend using voltage converter 12 V to 7 V.
At the moment, the two most popular connectors on the market are RCA (tulip) and 4PIN.

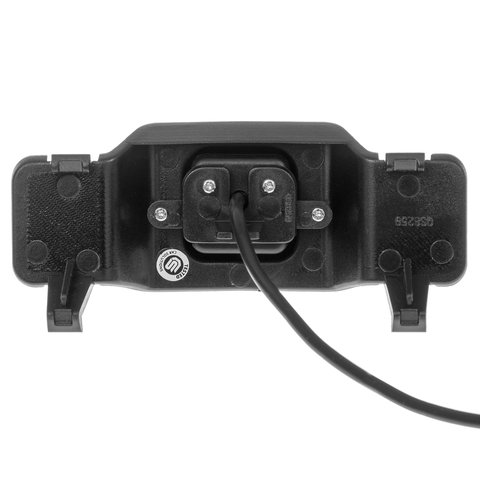

This camera is equipped with 4PIN connector, which is much thinner compared to RCA. It makes the installation even more convenient, since the cable is easier to push through the nodes of the car.
How to Connect a Car Camera
FAQ on Camera Connection
- How to connect an aftermarket rear view camera to an OEM display
- Common mistakes made during connection of the reverse camera power
Usage
This is a front view camera with parking guidelines by default. However, you can disable them. To do this, cut the white cable:
Features
- Colourful image
- High resolution
- Waterproof case
- High or low temperature resistant
- Easy installation
- Automatic white balance
Technical Specifications
| Sensor | 1/3 Sony CCD |
| Video system | NTSC |
| Effective pixels | 628 × 582/628 × 512 |
| Horizontal resolutions | 480 TVL |
| Viewing angle | 170° |
| Minimum illumination | 0.5 lux |
| Video output | 1.0Vp-p，75 Ohm |
| Case | waterproof (IP66 class) |
| Operating voltage | 12 V ± 1V |
| Operating temperature | from -20°C to +70°C |
| Storage temperature | from -40°C to +80°C |

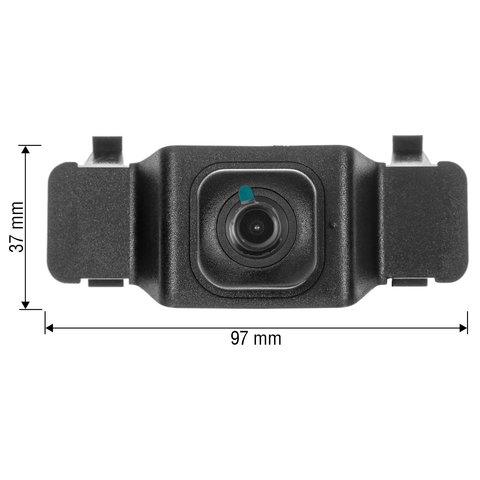

| Dimensions (W×H×D) | 97 × 37 mm |
| Power cable length | 1.5 m |
| Video cable length | 5 m |
Package Content
- Car front view camera for Toyota Corolla 2019 YM
- Power cable
- Video cable
Specifications
| Front View Camera is compatible with the following models of Cars |
|
| Viewing angle |
|
| Place of Installation |
|
