Front View Camera for Toyota Highlander 2012-2013 YM

ID: 891888
ID: 891888 0.175 kg
Availability in stock: HK
Car front view camera for Toyota Highlander with a large badge. 170° viewing angle.
USD 30.00
Add to cart
USD 30.00
Add to cart
Add to wishlist
Suggest your price
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

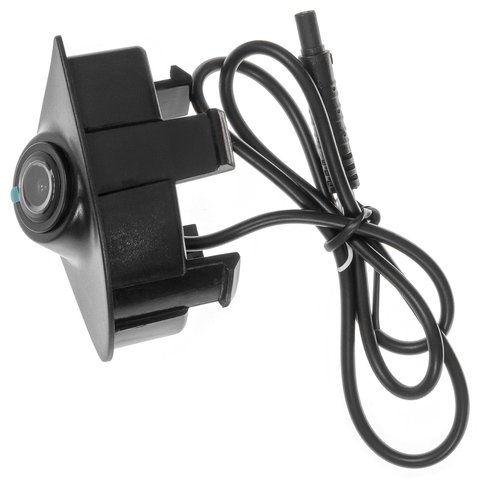

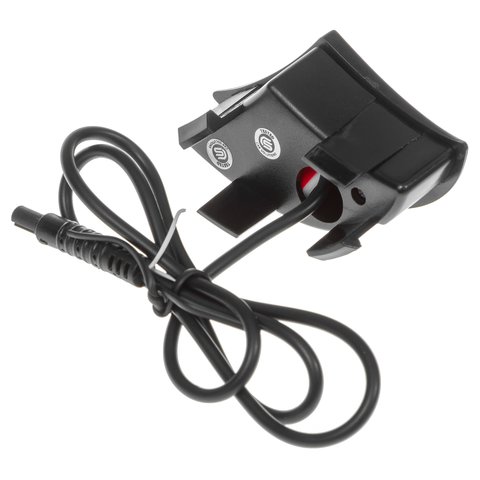

Car front view camera for Toyota Highlander 2012-2013 YM with a large badge. The camera is flush mounted into Toyota badge.

RFCC camera control system will allow you to quickly and easily connect the front view camera and switch between images from connected cameras using OEM steering wheel buttons of your car.

How RFCC works

Youtube video

Note! This camera is not meant for constant connection to car's electrical system. Power supply should be organized in such way that the camera switches on only when it is necessary. We also recommend using voltage converter 12 V to 7 V.

At the moment, the two most popular connectors on the market are RCA (tulip) and 4PIN.

Comparison of video signal connectors

This camera is equipped with 4PIN connector, which is much thinner compared to RCA. It makes the installation even more convenient, since the cable is easier to push through the nodes of the car.

How to Connect a Car Camera

Youtube video

FAQ on Camera Connection

Usage

This is a front view camera with parking guidelines by default. However, you can disable them. To do this, cut the white cable

Features

  • Colourful image
  • High resolution
  • Waterproof case
  • High or low temperature resistant
  • Easy installation
  • Automatic white balance

Front view camera installation in Toyota badge

Front view camera installation in Toyota badge

Technical Specifications

Sensor 1/3 Sony CCD
Video system NTSC
Effective pixels 628 × 582/628 × 512
Horizontal resolutions 480 TVL
Viewing angle 170°
Minimum illumination 0.5 lux
Video output 1.0Vp-p,75 Ohm
Case waterproof (IP66 class)
Operating voltage 12 V ± 1V
Operating temperature from -20°C to +70°C
Storage temperature from -40°C to +80°C
Dimensions 62 × 50 mm
Power cable length 1.5 m
Video cable length 5 m

Package Content

  • Car front view camera for Toyota Highlander 2012-2013 YM
  • Power cable
  • Video cable
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
All rights reserved. This material from car-solutions.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
Front View Camera is compatible with the following models of Cars
  • Toyota Highlander
Place of Installation
  • Car Badge
Viewing angle
  • 170°
