Front View Camera for Toyota Land Cruiser Prado 2014-2016 YM

id: 891891
Front View Camera for Toyota Land Cruiser Prado 2014-2016 YM
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 35.00
Add to cart
Overview
Rate product
0.2 kg
Availability in stock: HK
Warranty: 12 months
Car front view camera for Toyota Land Cruiser Prado 2014-2016 YM. 170° viewing angle. Read more
USD 35.00
Add to cart
Add to wishlist
USD 35.00
Add to cart
Impossible to estimate the shipping cost
Description

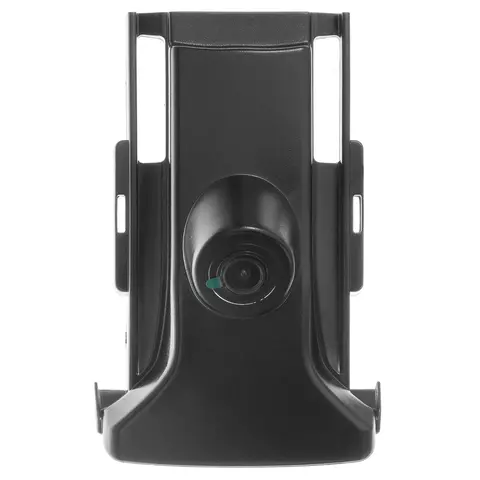

Car front view camera for Toyota Land Cruiser Prado 2014-2016 YM is mounted into Toyota badge.

Note! This camera is not meant for constant connection to car's electrical system. Power supply should be organized in such way that the camera switches on only when it is necessary. We also recommend using voltage converter 12 V to 7 V.

At the moment, the two most popular connectors on the market are RCA (tulip) and 4PIN.

Comparison of video signal connectors

This camera is equipped with 4PIN connector, which is much thinner compared to RCA. It makes the installation even more convenient, since the cable is easier to push through the nodes of the car.

How to Connect a Car Camera

Youtube video

FAQ on Camera Connection

Usage

This is a front view camera with parking guidelines by default. However, you can disable them. To do this, cut the white cable:

Features

  • Colourful image
  • High resolution
  • Waterproof case
  • High or low temperature resistant
  • Easy installation
  • Automatic white balance

Technical Specifications

Sensor 1/3 Sony CCD
Video system NTSC
Effective pixels 628 × 582/628 × 512
Horizontal resolutions 480 TVL
Viewing angle 170°
Minimum illumination 0.5 lux
Video output 1.0Vp-p,75 Ohm
Case waterproof (IP66 class)
Operating voltage 12 V ± 1V
Operating temperature from -20°C to +70°C
Storage temperature from -40°C to +80°C

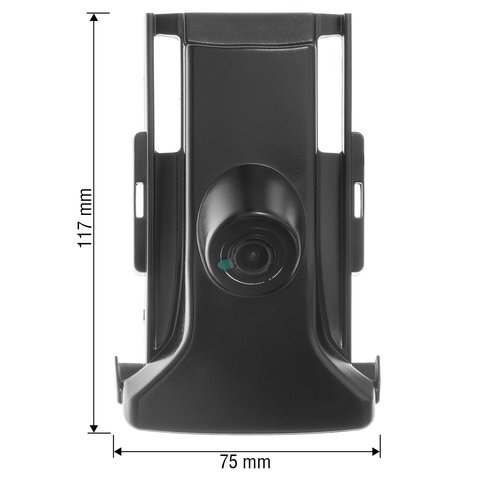

Dimensions 117 × 75 mm
Power cable length 1.5 m
Video cable length 5 m

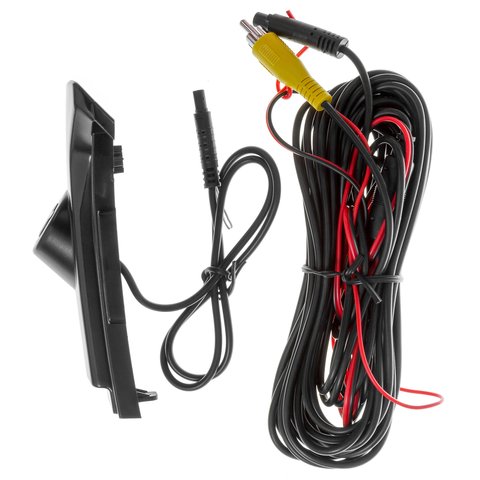

Package Content

  • Car front view camera for Toyota Land Cruiser Prado 2014-2016 YM
  • Power cable
  • Video cable
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
All rights reserved. This material from car-solutions.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
Front View Camera is compatible with the following models of Cars
  • Toyota Land Cruiser 150
  • Toyota Land Cruiser Prado
Viewing angle
  • 170°
Place of Installation
  • Car Badge
