Navigation System for Toyota / Lexus with GVIF based on Andromeda

ID: 855617
ID: 855617 1 kg
Navigation system on Android 4.0.4 for Toyota / Lexus cars with GVIF signal based on Andromeda. 3G modem, USB Wi-Fi adapter, touch screen controller, and USB hub are included in the package.
Discontinued
Contact
sales team
Discontinued
Contact
sales team
Add to wishlist
Suggest your price
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

Navigation system is designed for Toyota / Lexus cars with GVIF signal. The navigation box works under Android 4.0.4 platform allowing you to expand the device functionality by various programs and application from Google Play.

If you have a car with RGB signal, you will need navigation system for Toyota/Lexus with RGB signal.

Compare CS9100/CS9200/CS9900/KD-900/Andromeda navigation boxes.

Note! You will need a GVIF interface to install this navigation system. We recommend GVIF interface for Lexus/Toyota.

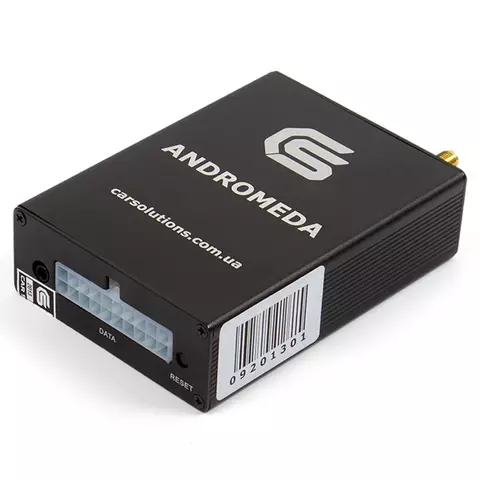

Andromeda Navigation Box
Additional Features

Navigation Box Functionality Expansion

  • Internet connection
    Connection to the Internet via 3G modem (included in the package). Wi-Fi connection with the help of USB adapter(included in the package).
  • USB devices connection. You can connect 7 USB devices via USB hub (included in the package)

Expanded Multimedia Features

You can install a lot of programs and applications (be it games or widgets) which would significantly expand multimedia features of your navigation box and car monitor.

OEM Antenna Connection

Specially developed adapter allows you to connect navigation box to OEM GPS antenna which provides high quality signal and easier installation.

Andromeda Navigation Box
Technical Specifications

System Processor Telechips TCC8925 1GHz
OS Android 4.0.4
Language Multilanguage support
Memory ROM 4 GB (2 GB available)
RAM DDR3 1 GB
Memory cards MMC, miniSD, SD, SDHC up to 32 GB
(depends on the manufacturer)
Video outputs RGB 800×480
Audio outputs RCA linear stereo
TS 3.5 mm speaker socket (mono)
Data USB A type (for external devices)
USB (4) via USB hub (included in the package)
Control Touch screen panel Direct connection
Car OEM control buttons Via touch adapter
GPS Chipset JRC G591
Channels 66
Frequency L1 1575,42 MHz
Sensitivity -148 dB
Reacquisition 1 s
Hot/warm/cold start 1.5 s / 34 s / 35s
Antenna SMA, active
Power 10-30 V DC
Dimensions Main board dimensions 103 mm × 75 mm × 30 mm
Weight 210 g

Andromeda Navigation Box
Compatibility

If you don't know the type of the signal in your car, the appearance of your screen menu will help you. It should be the following:

Caution

Lexus

Model Model years Signal
From To
LS 2007 GVIF
GS
RX
ES
IS

Toyota

Model Model years Signal
From To
Land Cruiser 2006 2009 GVIF
Prius 2008 2010

Andromeda Navigation Box
Manuals and Downloads

Andromeda Navigation Box
Package Content

  • Andromeda navigation box main board
  • Touch screen controller
  • 3G modem
  • USB Wi-Fi adapter
  • USB hub
  • GPS antenna
  • External speaker
  • 8 GB memory card
  • Connection cables set

*Note! Navigation software, touch screen panel, and antenna adapter are not included in the package.

Note! Navigation box installation shall be performed by well-trained specialist. Otherwise, we are not liable for equipment damage or incorrect operation.

Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
Note! Car Solutions is not liable for device incorrect operation in case of unauthorised OS upgrade. If you have problems with navigation box original OS operation, describe your situation on our forum, and our technical specialists will provide the solution.
All rights reserved. This material from car-solutions.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
Navigation Box is compatible with the following models of Cars
  • Toyota
  • Lexus
Navigation Box is compatible with the following models of Cars
  • Toyota Highlander
  • Toyota Crown
  • Toyota Prius
  • Toyota Avalon
  • Lexus RX
  • Lexus ES
  • Lexus LX
  • Lexus LS
  • Lexus IS
  • Lexus GS
  • Lexus GX
  • Lexus SC
Operation System
  • Android
Processor frequency
  • 1,2 GHz
GPS Receiver
  • JRC G591
RAM size
  • 1 GB
ROM size
  • 4 GB
USB Ports
  • Yes
Wi-Fi Connection
  • Yes
Bluetooth Connection
  • No
AV inputs
  • No
