Rear View Camera and Cable Kit for Renault / Dacia / Opel OEM Monitors
Overview
Description

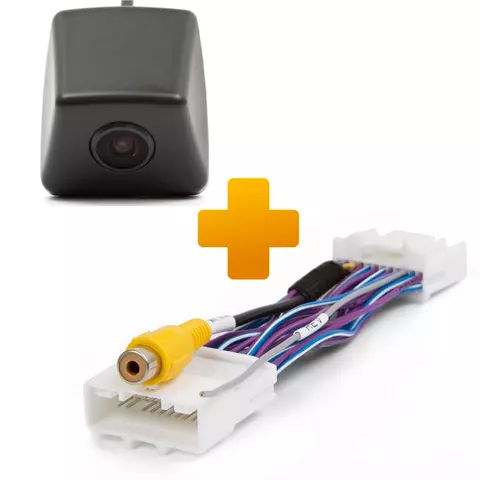

The kit includes a rear view camera and a camera connection cable for Renault, Dacia and Opel OEM head units.
Camera. Universal CCD rear view camera in waterproof case with 1/4" Sony Super HAD II image sensor and a 160° viewing angle.
Connection cable.The cable offers Plug&Play installation of aftermarket cameras without damaging the OEM wiring. Image from the rear view camera will automatically be displayed on the screen when reversing. The device is connected to the 28 pin socket (as shown in the connection diagram). After connection all OEM devices will continue to work as they did prior to the connection.
Note! Input for rear view camera shall be activated by Renault dealer or using alternative Menaco or Menavrus firmware.
Renault / Dacia / Opel Camera and Cable Kit
Video
Renault / Dacia / Opel Camera and Cable Kit
Compatibility
Renault / Dacia
| Model | Model years | Head unit | |
|---|---|---|---|
| From | To | ||
| Clio 4 | 2012 | – |
|
| Dokker | 2012 | ||
| Dokker VAN | 2012 | ||
| Dokker VP | 2012 | ||
| Duster | 2012 | ||
| Kwid | 2015 | ||
| Lodgy | 2012 | ||
| Logan | 2012 | ||
| Logan MCV | 2012 | ||
| Sandero | 2012 | ||
| Sandero Stepway | 2012 | ||
| Trafic | 2012 | ||
| Twingo | 2014 | ||
| Captur | 2013 | ||
| Clio | 2013 | ||
| Clio Estate | 2013 | ||
| Trafic Combi | 2013 | ||
Opel / Vauxhall
| Model | Model years | Head unit | |
|---|---|---|---|
| From | To | ||
| Vivaro | 2014 | – |
|
| Vivaro Combi | 2014 | ||
| Vivaro Crew Van | 2014 | ||
| Vivaro Platform Cab | 2014 | ||
Renault / Dacia / Opel Camera and Cable Kit
Camera Technical Specifications
| Sensor | 1/4″ Sony Super HAD II Colour CCD |
| Video system | NTSC |
| Effective pixel | 510 × 492 |
| Resolution | 380 TVL |
| Viewing angle | 160° (D) / 121° (H) / 88° (V) |
| Lens | F=1.67 |
| Video output | 1.0 Vp-p, 75 Ohm |
| Current consumption | 60 mA max (at 12 DC) |
| Shutter control | Auto IRIS (1/60 - 1/100 000) |
| S/N ratio | > 42 dB |
| Minimum illumination | 0.01 Lux |
| Case | Waterproof IP67 and IP68 |
| Operating voltage | 12 V (6V to 18 V) |
| Operating temperature | -20°C to +60°C |
| Weight | 75 g |
| Dimensions | 29 × 34 × 19 mm |
 |
 |
 |
 |
The photo is provided for reference only. Appearance of the control panel and monitor may slightly differ depending on the car model.
