Overview

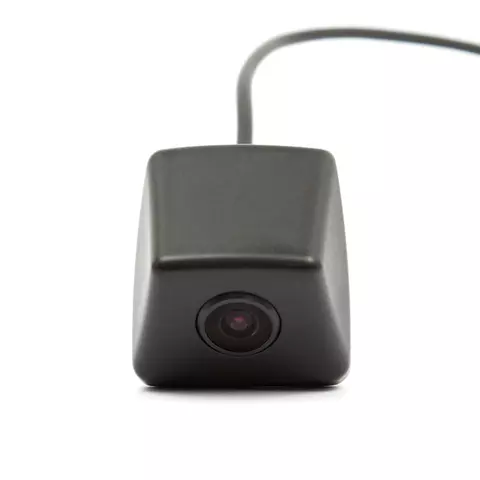

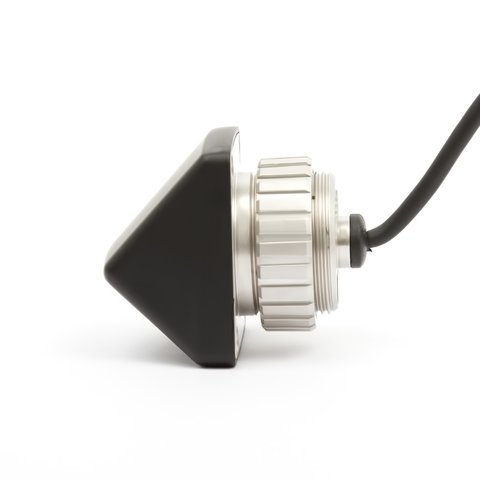

Universal CCD rear view camera in waterproof case with 1/4" Sony Super HAD II image pick-up device. Car rear view camera is one of the best parking assistance devices providing you wide field of view and colourful image. This reverse camera is designed to be connected to any car monitor with a composite yellow RCA jack.

For the sake of convenience of your car camera set usage you can buy car video quad splitter allowing you to connect and control up to four car cameras.

If you don't want to mess up with wires in the car you can make this camera wireless using camera transmitter and receiver.

Note! This camera is not meant for constant connection to car's electrical system. Power supply should be organized in such way that the camera switches on only when it is necessary (e.g. when reversing). We also recommend using voltage converter 12 V to 7 V.

How to Connect a Car Camera


FAQ on Camera Connection

CCD Rear View Camera
Features

  • High end quality
  • Colourful image
  • High resolution
  • Waterproof design
  • High or low temperature resistant
  • Easy installation

CCD Rear View Camera
Technical Specifications

Sensor 1/4″ Sony Super HAD II Colour CCD
Video system NTSC
Effective pixel 510 × 492
Resolution 380 TVL
Viewing angle 160° (D) / 121° (H) / 88° (V)
Lens F=1.67
Video output 1.0 Vp-p, 75 Ohm
Current consumption 60 mA max (at 12 DC)
Shutter control Auto IRIS (1/60 - 1/100 000)
S/N ratio > 42 dB
Minimum illumination 0.01 Lux
Case Waterproof IP67 and IP68
Operating voltage 12 V (6V to 18 V)
Operating temperature -20°C to +60°C
Weight 75 g
Dimensions 29 × 34 × 19 mm

CCD Rear View Camera
Package Content

  • Car rear view camera
  • Power and signal output cable
  • Sticker × 2
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
