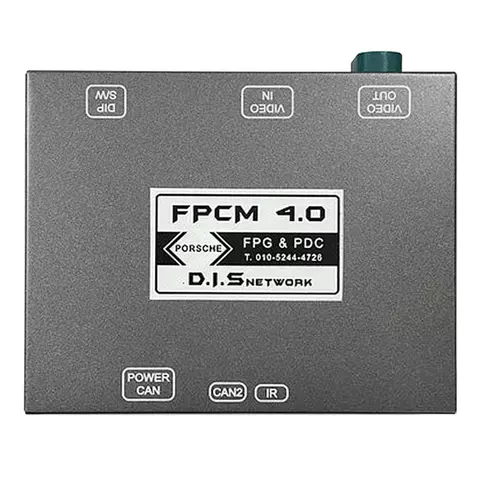

Rear View Camera Connection Adapter for Porsche PCM 4.0 with Parking Guidelines
id: 869553
Rear View Camera Connection Adapter for Porsche PCM 4.0 with Parking Guidelines
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Overview
0.9 kg Warranty: 12 months
This adapter allows to connect rear view and front view cameras to Porsche cars with PCM 4.0 head units. Equipped with active parking guidelines function. Read more
Discontinued
You may also like
Description
Adapter is used to connect rear view and front view cameras to OEM monitors of Porsche cars, equipped with PCM 4.0 head unit.
Equipped with active parking guidelines function (PAS).
Rear View Camera Adapter for Porsche
Additional Features
- Active parking guidelines (PAS)
- Support of PDC
Rear View Camera Adapter for Porsche
Technical Specifications
- Inputs:
- CVBS for rear view camera
- CVBS for front view camera
- Outputs:
- LCD output
- Power:
- Output voltage: 8-24 V DC
- Max. consumed power: 12 W
- Model selection by DIP switches
- Automatic display of rear view camera image when reversing
- Dimensions: 108 × 86 × 20 mm
Rear View Camera Adapter for Porsche
Compatibility
| Model | Model year | Head unit` | |
|---|---|---|---|
| From | To | ||
| Macan | 2016 | – | PCM 4.0 |
| Macan S | |||
| Macan GTS | |||
| 991.2 | |||
| 911 | |||
How to Connect a Car Camera
FAQ on Camera Connection
- How to connect an aftermarket rear view camera to an OEM display
- Common mistakes made during connection of the reverse camera power
The photo is provided for reference only. Appearance of the control panel and monitor may slightly differ depending on the car model.
Rear View Camera Adapter for Porsche
Manuals
Rear View Camera Adapter for Porsche
Package Content
- Main module
- Remote control
- Cable set
- Power cable
- LVDS cable
- IR cable
- Rear view camera connection cable
If you have questions concerning this product or want to share your experience of its installation or application, visit our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
All rights reserved. This material from car-solutions.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
| Video Interface is compatible with Spare parts |
|
| Video Interface is compatible with |
|
| Touch screen control of the connected devices |
|
| Adaptive parking guidelines |
|
| Modes switch by OEM buttons |
|
| CAN bus support |
|
| Navigation input |
|
| DVD/HD/TV connection input |
|
| Rear view camera input |
|
| Built-in navigation |
|
