Rear View Camera for BMW (3, 5, X3 Series)
Overview
Description

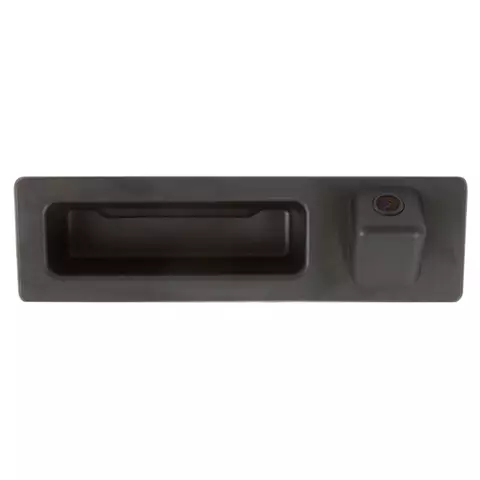

Tailgate rear view camera in waterproof case has been designed especially for BMW F10. This reverse camera is installed into the tailgate handle in the OEM place designed by the manufacturer. Therefore, there is no need to drill the car body for the rear view camera installation.
Parking reference lines option is active by default. You can deactivate this function by cutting the marked wire.
If you would like to install an aftermarket camera we suggest buying an interface or an adapter, which also allow you to connect additional video sources to your car monitor.
Note! This camera is not meant for constant connection to car's electrical system. Power supply should be organized in such way that the camera switches on only when it is necessary (e.g. when reversing). We also recommend using voltage converter 12 V to 7,5 V.
How to Connect a Car Camera
FAQ on Camera Connection
- How to connect an aftermarket rear view camera to an OEM display
- Common mistakes made during connection of the reverse camera power
BMW Tailgate Reverse Camera
Compatibility
| Series | Body |
|---|---|
| 3 | F30 |
| 5 | F10 |
| X3 | F25 |
BMW Tailgate Reverse Camera
Features
- Installation instead of the tailgate handle
- Parking reference lines
- No need to drill the car body
- Colourful image
- High resolution
- Waterproof case
- High or low temperature resistant
- Easy installation
BMW Tailgate Reverse Camera
Place of Installation
BMW Tailgate Reverse Camera
Technical Specifications
| Sensor | 1/4’’ ASX 340CS CMOS Sensor |
| Video system | NTSC/PAL* |
| Effective pixels | 728 × 560 |
| Horizontal resolution | 480 TVL (NTSC) / 560 TVL (PAL) |
| Viewing angle | 170° |
| Video output | 1.0Bp-p，75 Ohm |
| Body | IP66 |
| Operating voltage | 12 V (6 V∼ 18 V) |
| Operating temperature | -30°C ~ +70°C |
| Dimensions | 161 × 48 mm |
*Note! Please specify the necessary camera standard (PAL or NTSC) when placing your order. Otherwise, we will send a camera with the standard of our choosing.
BMW Tailgate Reverse Camera
Manuals
BMW Tailgate Reverse Camera
Package Content
- Rear view camera
- Connection cable
Specifications
| Rear View Camera is compatible with |
|
| Lighting |
|
| Place of Installation |
|
| Viewing angle |
|
| Colour |
|
