Universal Car Rear View Camera (GT-S622)
sales team
If you would like to install an aftermarket camera we suggest buying an interface or an adapter, which also allow you to connect additional video sources to your car monitor.
Note! This camera is not meant for constant connection to car's electrical system. Power supply should be organized in such way that the camera switches on only when it is necessary (e.g. when reversing). We also recommend using voltage converter 12 V to 7 V.
How to Connect a Car Camera
FAQ on Camera Connection
- How to connect an aftermarket rear view camera to an OEM display
- Common mistakes made during connection of the reverse camera power
Rear View Camera
Features
- Colourful image
- High resolution
- Waterproof case
- High or low temperature resistant
- Easy installation
- Automatic white balance
Rear View Camera
Technical Specifications
| Sensor | OV7950 |
| Video system | NTSC |
| Effective pixels | 510 × 496 |
| Horizontal resolutions | 380 TVL |
| Viewing angle | 120° |
| Minimum illumination | 0,2 lux / F=1.8 |
| Video output | 1.0Vp-p，75 Ohm |
| Case | Waterproof (IP67 and IP68 classes) |
| Operation voltage | 8 ∼ 12 V |
| Operation temperature | from -20°C to +75°C |
| Storage temperature | from -40°C to +80°C |
| Dimensions (W×D×H) | 24.5 mm × 36.5 mm × 24.5 mm |
| Hole diameter | 22.5 mm |
| Power cable length | 1.5 m |
| Video cable length | 5 m |
Rear View Camera
Package Content
- Car rear view camera
- Power cable

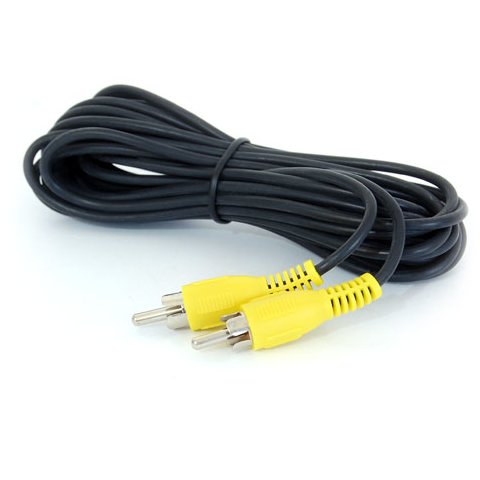

- Video cable
- Hole saw
If you would like to install an aftermarket camera we suggest buying an interface or an adapter, which also allow you to connect additional video sources to your car monitor.
Note! This camera is not meant for constant connection to car's electrical system. Power supply should be organized in such way that the camera switches on only when it is necessary (e.g. when reversing). We also recommend using voltage converter 12 V to 7 V.
How to Connect a Car Camera
FAQ on Camera Connection
- How to connect an aftermarket rear view camera to an OEM display
- Common mistakes made during connection of the reverse camera power
Rear View Camera
Features
- Colourful image
- High resolution
- Waterproof case
- High or low temperature resistant
- Easy installation
- Automatic white balance
Rear View Camera
Technical Specifications
| Sensor | OV7950 |
| Video system | NTSC |
| Effective pixels | 510 × 496 |
| Horizontal resolutions | 380 TVL |
| Viewing angle | 120° |
| Minimum illumination | 0,2 lux / F=1.8 |
| Video output | 1.0Vp-p，75 Ohm |
| Case | Waterproof (IP67 and IP68 classes) |
| Operation voltage | 8 ∼ 12 V |
| Operation temperature | from -20°C to +75°C |
| Storage temperature | from -40°C to +80°C |
| Dimensions (W×D×H) | 24.5 mm × 36.5 mm × 24.5 mm |
| Hole diameter | 22.5 mm |
| Power cable length | 1.5 m |
| Video cable length | 5 m |
Rear View Camera
Package Content
- Car rear view camera
- Power cable
- Video cable
- Hole saw
| Rear View Camera is compatible with |
|
| Lighting |
|
| Place of Installation |
|
| Viewing angle |
|
| Colour |
|
