Car Navigation System for Mazda Based on CS9100

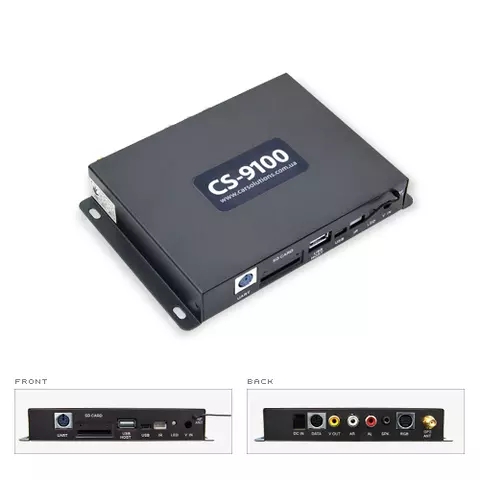

Navigation system for Mazda based on CS9100 is a navigation box to be connected to the car OEM navigation system or additional monitor. It is equipped with external GPS receiver with antenna. CS9100 navigation box may be installed into Mazda CX7 and Mazda CX9*cars with OEM color display. CS9100 navigation box is installed into the car via interface adapter instead of the OEM navigation. As a result, the user enjoys full emulation of OEM navigation with the required interface language and maps of the region of interest. CS9100 supports touchscreen navigation function. For models that do not have touch screens, a remote control with touchpad is used.

Navigation system for Mazda based on CS9100 supports software from Navitel, IGo2006, IGo8, Garmin etc. In case a new version of the navigation program is released, it can be easily updated as the navigation device is installed into the specially provided place with direct access to SD card.

* CS9100 navigation box installation in Mazda cars does not cause wiring damage (it is performed without wire cutting off) and allows user to keep the car warranty valid.
* Warning: As a result of OEM navigation system disabling in Mazda CX7 and Mazda CX9 time will not be shown in the menu.

Compare CS9100/CS9200/CS9900/KD-900/Andromeda navigation boxes.

Navigation System for Mazda based on CS9100
Additional Features

Connection to AV receivers

By means of additional cables: C-NET, PA-AVI, PA-RGB1, PA-RGB2, JVC-TC1, PI-RGB1, AP-RGB1, KEN-RGB1, Audiovox, Elead, Fujitsu Ten user can connect the CS9100 navigation box to AV receivers (Clarion, Panasonic, Pioneer, Alpine, Kenwood, Audiovox, Elead or Fujitsu Ten with built-in touch screen) to enjoy touchpad navigation control and watch images.

Internet connection (optional)

Connect Huawei 3G USB Modem to CS9100 navigation box to access wireless Internet.

Navigation System for Mazda based on CS9100
Technical Specifications

• CPU: Samsung 2440 ARM9 400 MHz
• OS\Language\Localization: WIN CE 5.0\Eng\Rus(Eng)
• Memory: Nand 64 MB, SDRAM 64 MB
• Memory card: MMC, miniSD, SD, SDHD up to 16 GB (SDHC depends on the manufacturer)
• Video Out:
  • RGB 480 × 234 (depends on the firmware version)
  • 1 x RCA NTSC 3.58 MHz
• Audio Out:
  • 1 x RCA stereo 0,25 W
  • 1 x mono jack 3.5 mm (for the speaker)
• USB Host: 1 x Type A (for external devices)
• USB Device: 1 x Mini USB (deactivated)
• Control:
  • 1 x Remote control with a touch pad
  • Touch screen (via USB controller or cable for multimedia receiver) *1
  • Onboard control devices (adapter for Mazda) *2
• GPS:
  • MTK MT3329T
  • Channels: 66
  • Frequency: L1 1575.42 MHz
  • Sensitivity -165 dB
  • Reacquisition: 1 s
  • Protocol: NMEA0183 V3.01: GPGGA (1 time/1 s), GPGSA (1 time/5 s), GPGSV (1 time /5 s), GPRMC (1 time /1 s), GPVTG (1 time/1s), (additionally GLL or MTK NMEA Command)
  • Hot\Warm\Cold start: < 1\28\30 s
  • Antenna: SMA active (cable length 5m)
• Power supply: 10~30 V DC
• Main board dimensions: 160 mm × 110 mm × 26 mm
• Weight: 1.130 kg

*1 USB controller and cables for multimedia receivers are not included in the package.
*2 Adapter for Mazda is sold only in the package of navigation system based on CS9100.

Navigation System for Mazda based on CS9100
Compatible Monitors

Mazda CX7 OEM Monitor	Mazda CX9 OEM Monitor

Navigation System for Mazda based on CS9100
Manuals

• Download manual for CS9100 navigation box installation in Mazda (ver. 4.0)
• Download guide for GPS antenna installation

Navigation Software Installation Tips

• Default way for navigation software installation on memory card: Navi\Navi.exe
• Navigation software settings:
  • GPS receiver COM port: COM1
  • GPS receiver rate: 9600
  • Video output resolution: 480×234

Navigation System for Mazda based on CS9100
Package Content

• CS9100 navigation box
• Remote control unit
• GPS antenna
• External speaker
• 2 GB SD memory card
• Cable set
• Interface adapter for Mazda CX7 and Mazda CX9

* Navigation programs are not included in the package.

Note! Navigation unit and navigation software installation shall be performed by well-trained specialist. Otherwise, we are not liable for equipment damage or incorrect operation.
