Car Rear View Camera for Honda CR-V
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued

Overview

0.19 kg Warranty: 12 months
Car rear view camera in waterproof case for Honda CR-V. Reverse camera is a good parking assistance device providing you wide field of view and colourful image. 170° viewing angle. Read more
Discontinued
Discontinued
Impossible to estimate the shipping cost

You may also like

Description

Car rear view camera in waterproof case has been designed especially for Honda CR-V.
Rear view camera is one of the best parking assistance devices providing you wide field of view and colourful image. This reverse camera is designed to be connected to any car monitor by yellow composite RCA jack.

If you use more than one car camera we suggest buying interface, allowing you to connect up to three cameras to your car monitor.
If you want to install camera without cutting into wiring or breaking car trim, use transmitter and receiver kit, which will transform your camera into wireless reverse camera just in one minute.

Note! This camera is not meant for constant connection to car's electrical system. Power supply should be organized in such way that the camera switches on only when it is necessary (e.g. when reversing). We also recommend using voltage converter 12 V to 7 V.

How to Connect a Car Camera

Youtube video

FAQ on Camera Connection

Honda CR-V Rear View Camera
Features

  • Colourful image
  • High resolution
  • Waterproof case
  • High or low temperature resistant
  • Easy installation
  • Automatic white balance
  • Parking reference lines (option)

Honda CR-V Rear View Camera
Technical Specifications

Sensor OV7950
Video system NTSC
Effective pixels 656 × 492
Horizontal resolutions 420 TVL
Viewing angle 170°
Minimum illumination 2.26V/Lux-sec at 5600 k
Video output 1.0Vp-p,75 Ohm
Case Waterproof
(IP67 and IP68 classes)
Operation voltage 8 ∼ 12 V
Operation temperature from -20°C to +75°C
Storage temperature from -40°C to +80°C
Dimensions (W×H×D) 69.2 mm × 32.2 mm × 29.5 mm
Power cable length 1.5 m
Video cable length 5 m

Honda CR-V Rear View Camera

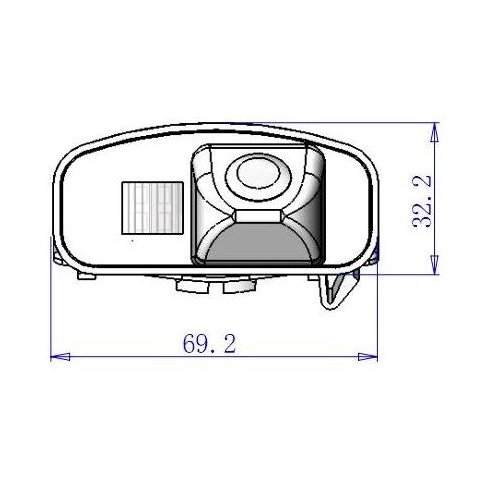

Dimensions

Honda CR-V reverse camera dimensions Honda CR-V reverse camera dimensions

Honda CR-V Rear View Camera
Package Content

  • Car rear view camera
  • Power cable
  • Video cable
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
All rights reserved. This material from car-solutions.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.

Specifications

Rear View Camera is compatible with
  • Honda
Lighting
  • No
Place of Installation
  • License Plate Lights Lamp
Viewing angle
  • 170°
Colour
  • Black
