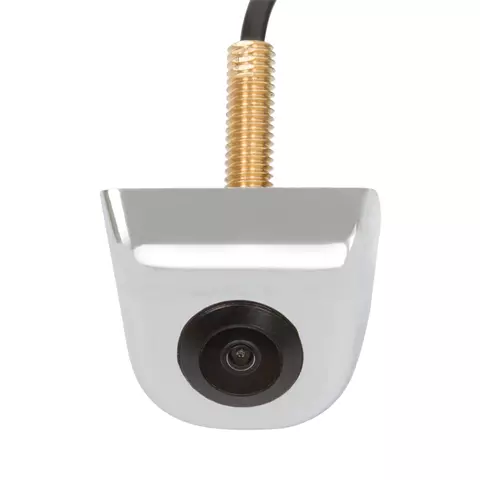

Universal Car Camera T609A (chrome colour)
Universal car camera in waterproof case can be used as reverse camera with mirror image as well as front or side view camera with direct image. The device can be connected to any car monitor using yellow composite RCA connector.
If you plan to connect more than one car camera we recommend buying car 4 channel colour video quad splitter which allows you to use up to four cameras.
Note! This camera is not meant for constant connection to car's electrical system. Power supply should be organized in such way that the camera switches on only when it is necessary. We also recommend using voltage converter 12 V to 7 V.
How to Connect a Car Camera
FAQ on Camera Connection
- How to connect an aftermarket rear view camera to an OEM display
- Common mistakes made during connection of the reverse camera power
This is reverse camera with parking guidelines by default. However, the device can also be used as front or side view camera. To do this cut one of the following cables:
- the green one, if you want to remove parking guidelines
- the white one, if you want to use it as front or side view camera (for direct image)
The video cable also has power wire which can be used for connecting the camera to the power directly near the signal receiver or for rear camera image activation.
|Effective pixels||512 × 582|
|Horizontal resolution||420 TVL|
|Video output||1.0Vp-p，75 Ohm|
|Case||Water proof (IP68)|
|Operation voltage||12 V DC|
|Operation temperature||from -20°C to +70°C|
|Storage temperature||from -40°C to +80°C|
|Dimensions||31 mm × 35 mm × 25 mm|
|Power cable length||1.5 m|
|Video cable length||6 m|
|Camera cable length||1.9 m|

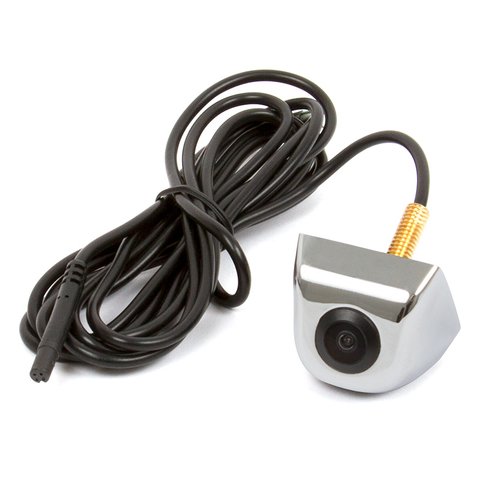

- Car camera with the cable
- Power cable
- Video cable
|Universal Camera is compatible with|| |
|Viewing angle|| |
|Place of Installation|| |
