Universal Car Rear View Camera (GT-S637)
Overview
Description

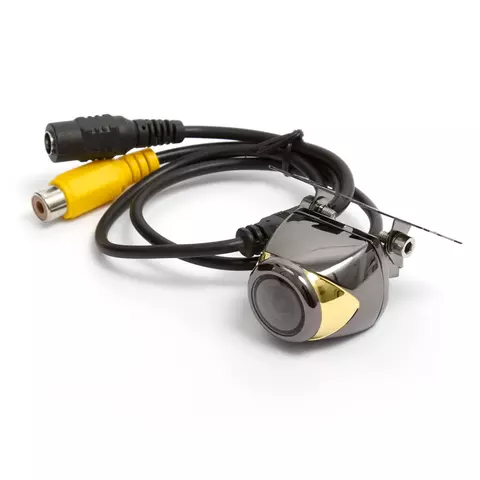

Universal rear view camera in waterproof case is one of the best parking assistance devices providing you wide field of view and colourful image. This reverse camera is designed to be connected to any car monitor by yellow composite RCA jack.
If you use more than one car camera we suggest buying interface, allowing you to connect up to three cameras to your car monitor.
If you want to install camera without cutting into wiring or breaking car trim, use transmitter and receiver kit, which will transform your camera into wireless reverse camera just in one minute.
Note! This camera is not meant for constant connection to car's electrical system. Power supply should be organized in such way that the camera switches on only when it is necessary (e.g. when reversing). We also recommend using voltage converter 12 V to 7 V.
How to Connect a Car Camera
FAQ on Camera Connection
- How to connect an aftermarket rear view camera to an OEM display
- Common mistakes made during connection of the reverse camera power
Rear View Camera
Features
- Colourful image
- High resolution
- Waterproof case
- High or low temperature resistant
- Easy installation
- Automatic white balance
Rear View Camera
Technical Specifications
Sensor | OV7950 |
Video system | NTSC |
Effective pixels | 656 × 492 |
Horizontal resolutions | 420 TVL |
Viewing angle | 170° |
Minimum illumination | 0,2 lux / F=1.8 |
Video output | 1.0Vp-p,75 Ohm |
Case | Waterproof (IP67 and IP68 classes) |
Operation voltage | 8 ∼ 12 V |
Operation temperature | from -20°C to +75°C |
Storage temperature | from -40°C to +80°C |
Dimensions | 31 mm × 31 mm × 25 mm (d 21 mm) |
Holder width | 45 mm |
Power cable length | 1.5 m |
Video cable length | 5 m |
Rear View Camera
Package Content
- Car rear view camera
- Power cable
- Video cable
